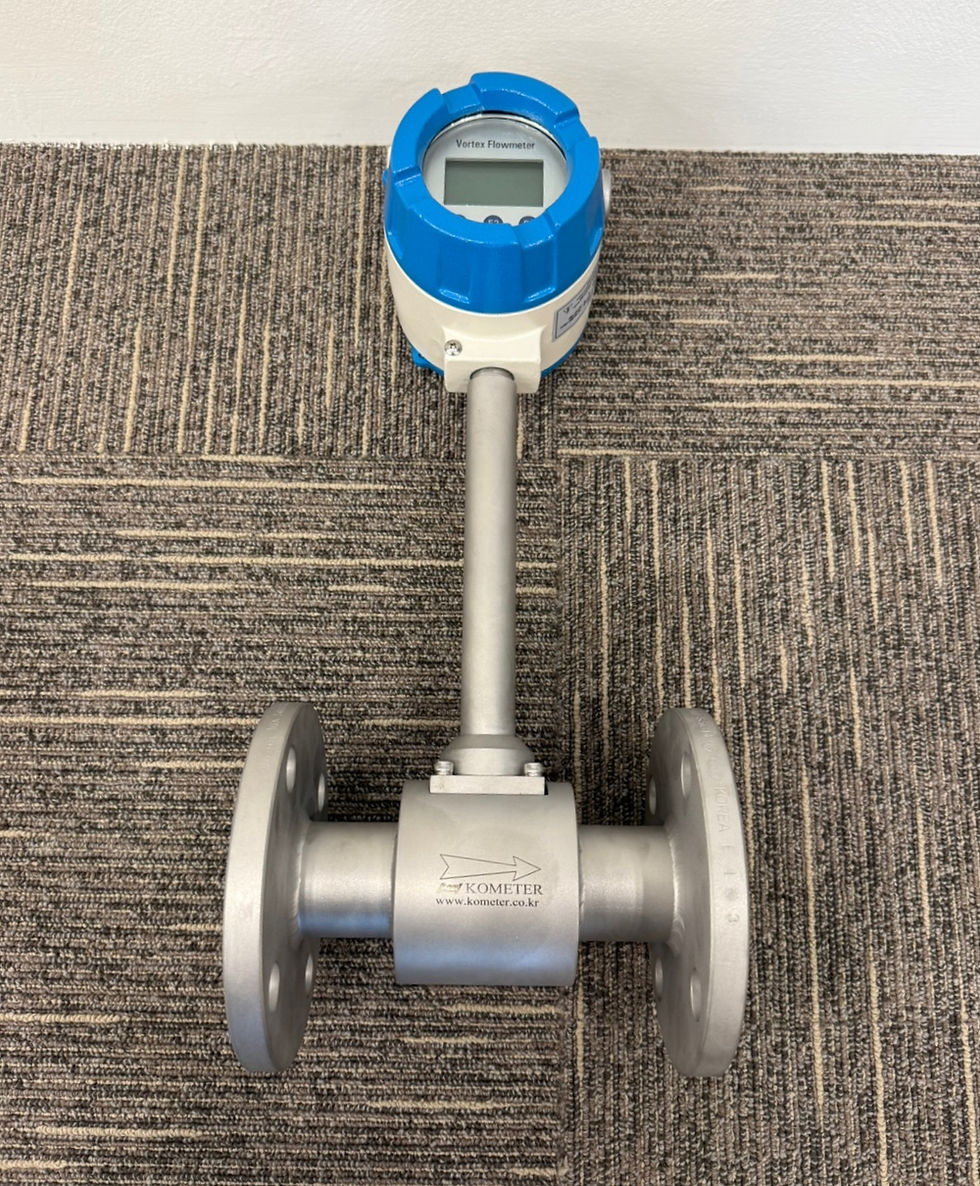

VOLTEX FLOW METER
Size : Flange Type - 15A(1/2") ~ 300A(12")
Process Connection : Flange Type - Standard JIS 10K RF (Option. ANSI 150#, DIN 16bar) Wafer Type
Flow Velocity : Water - 0.6 m/s ~ 6m/s
Accuracy : ±1.0 %F.S
Max Pressure : 20kgf/cm2.G
Power Supply : DC24 V (wire)
Output : DC 4-20 mA
